IME-Light

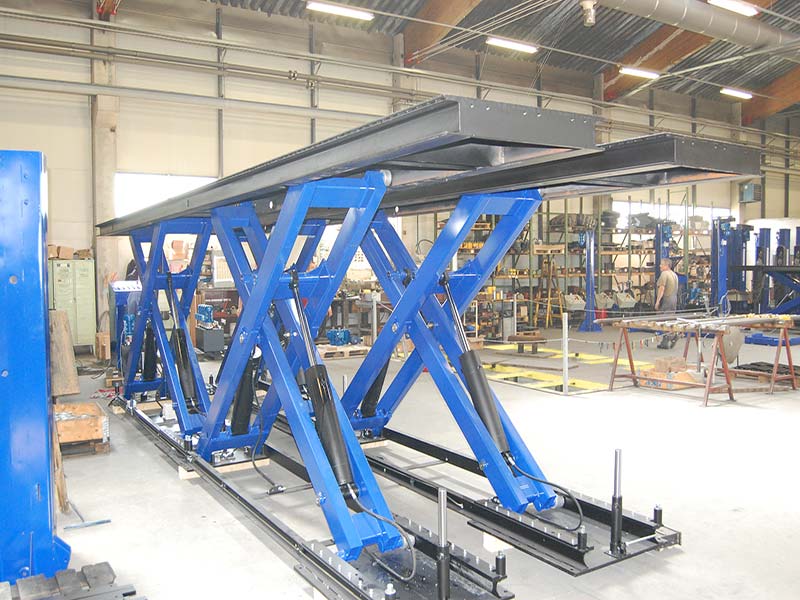

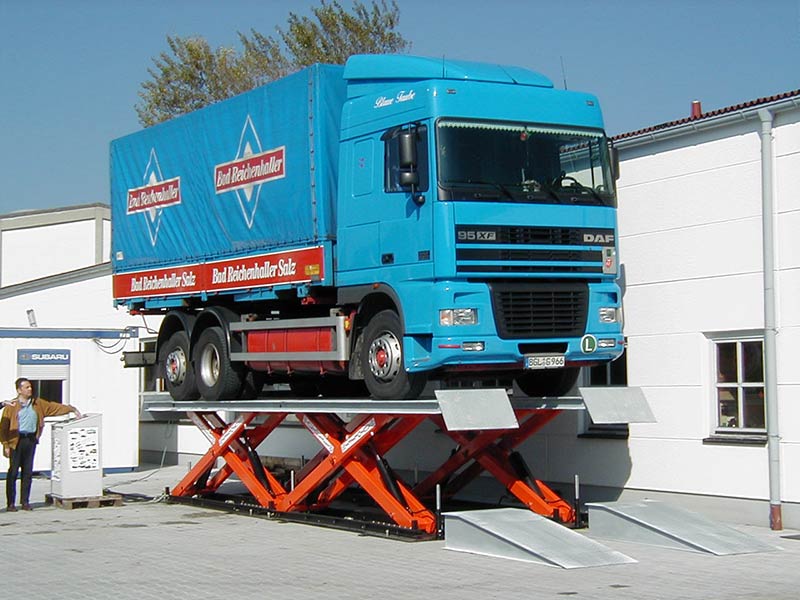

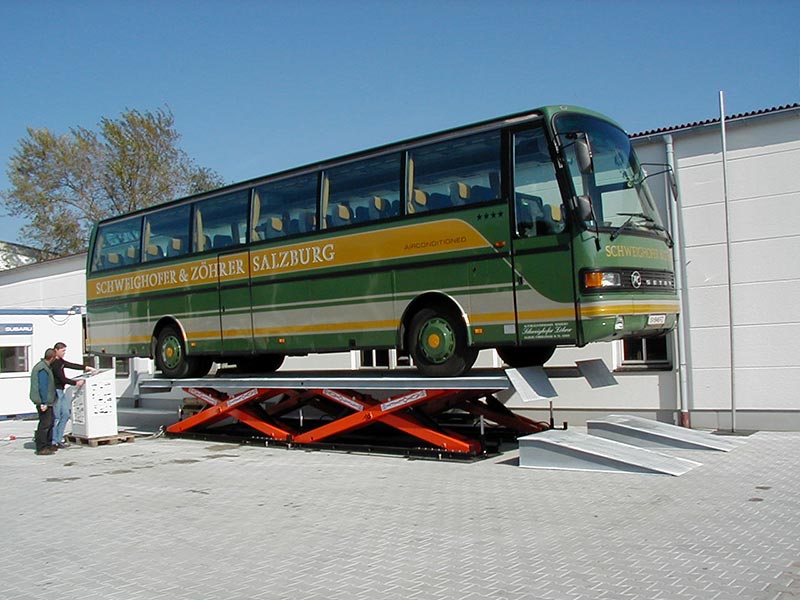

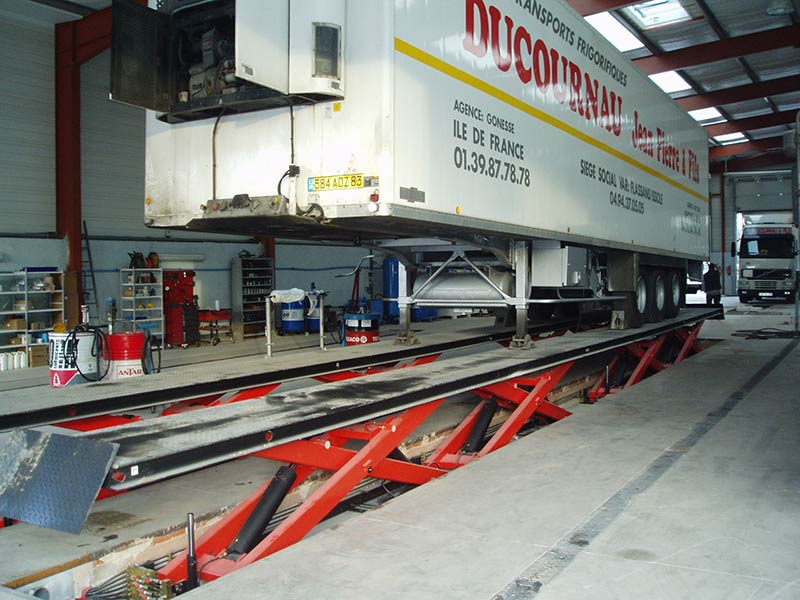

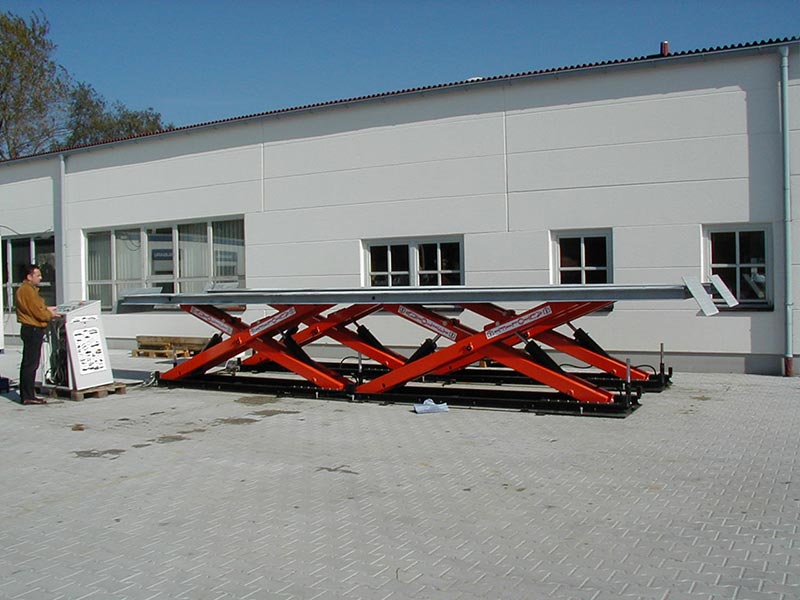

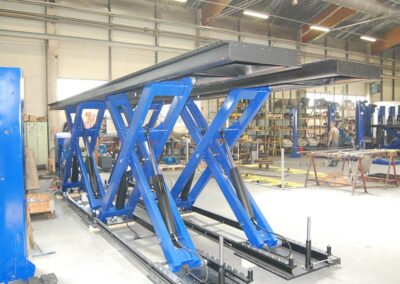

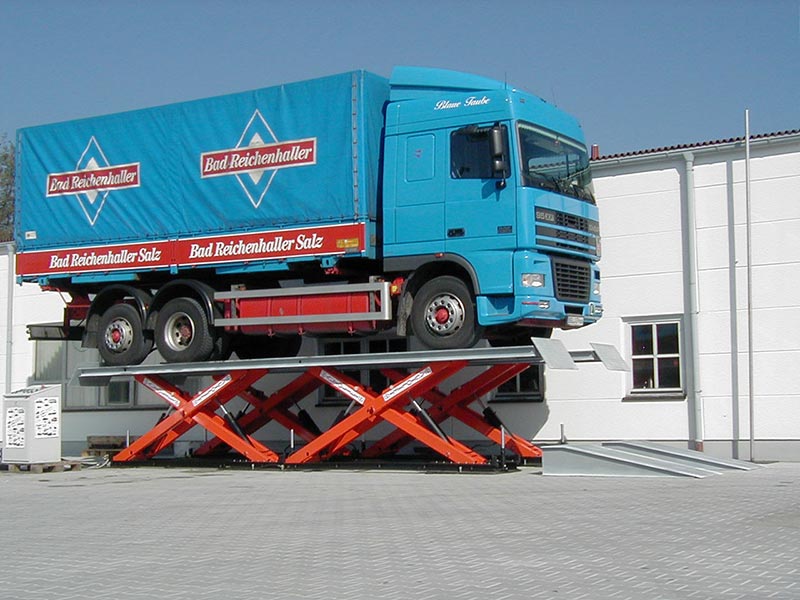

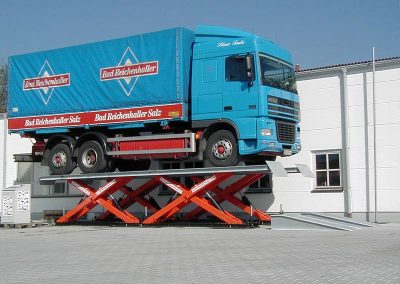

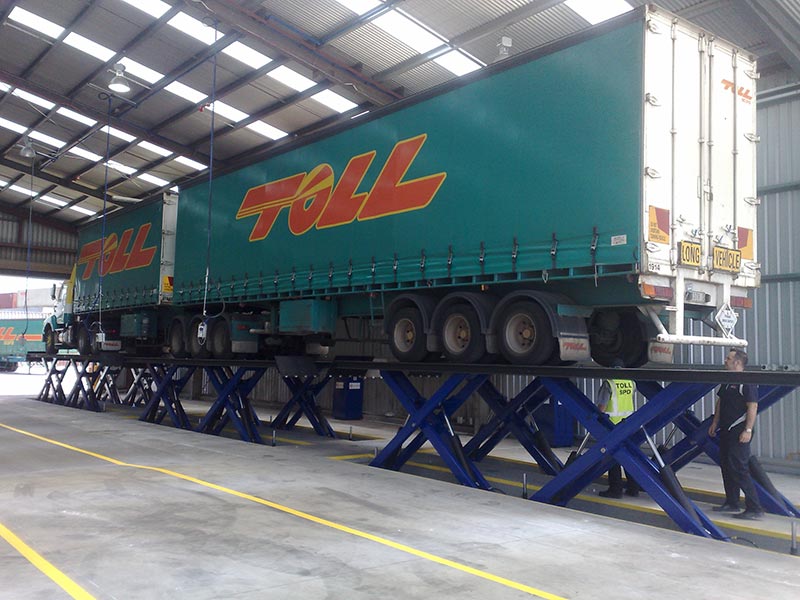

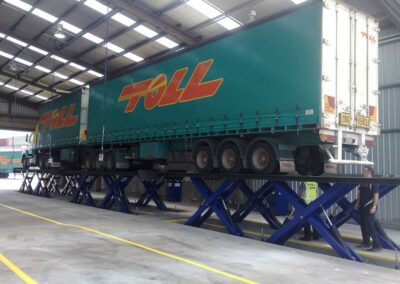

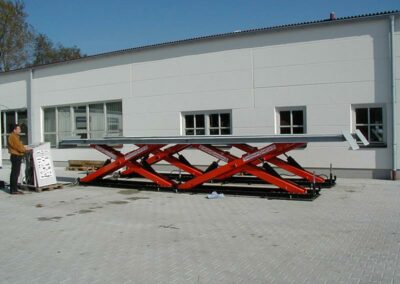

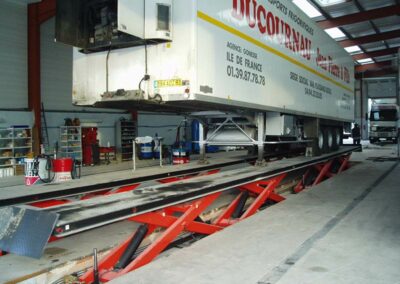

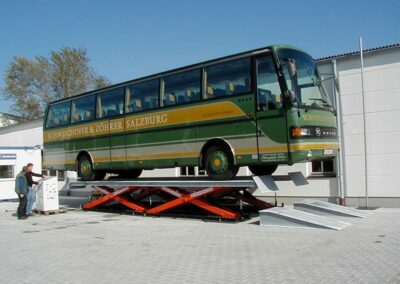

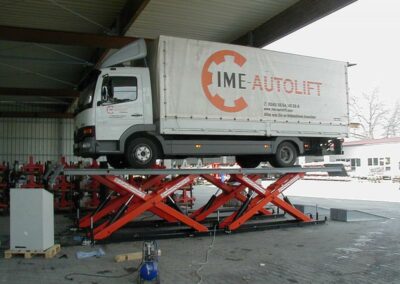

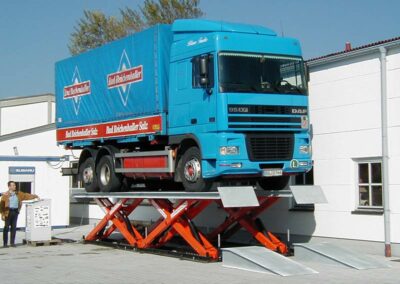

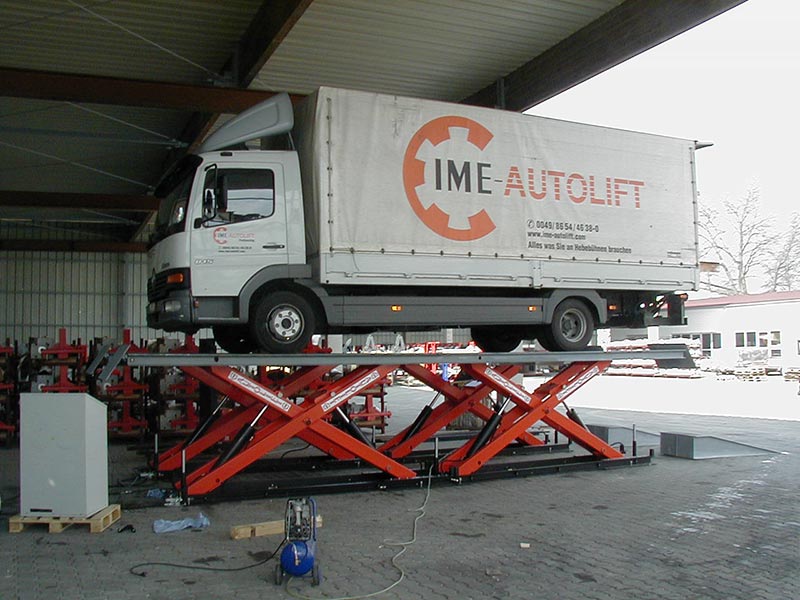

SSH scissor lift for trucks and buses
IME-Light
SSH scissor lift for trucks and buses

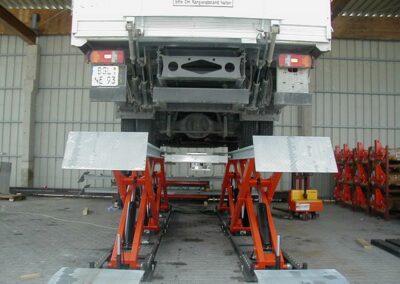

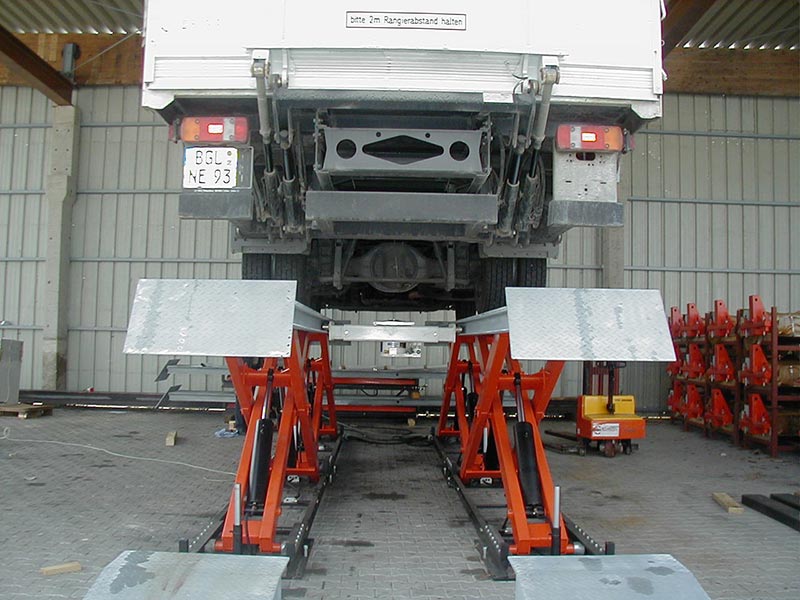

- No connecting bars between the tracks, no mechanical connection between the both sides, gives possibility for variable space between the tracks, free passing between the tracks.

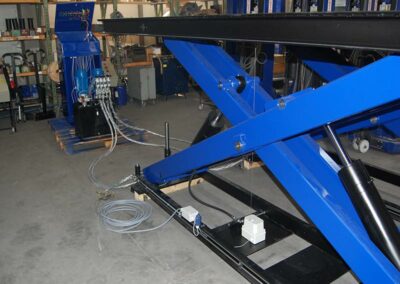

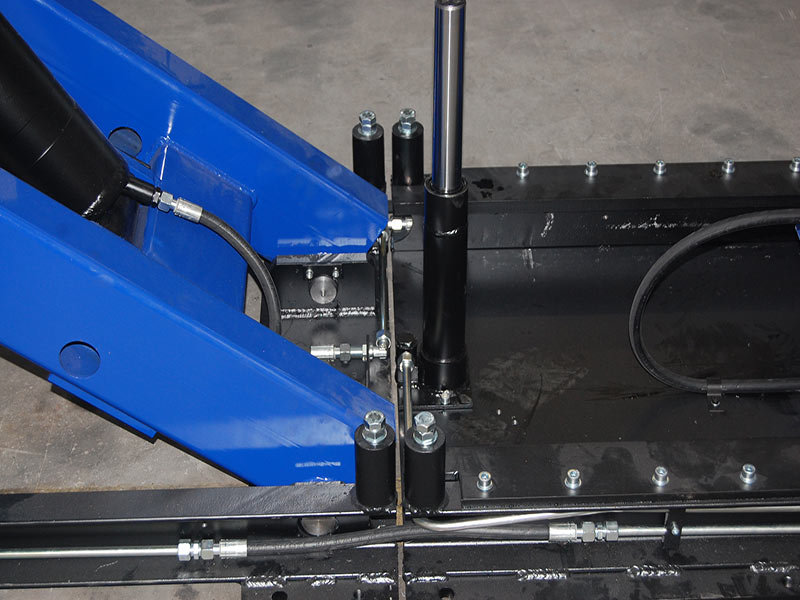

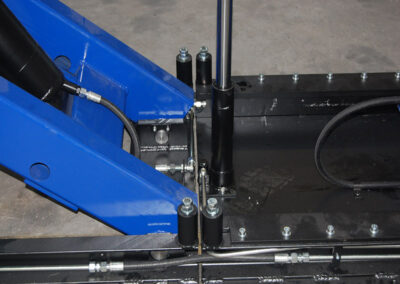

- Hydraulic synchronization with double, in opposite direction working differential-cylinder system, no electrical or electronic parts on the scissors necessary.
- Safety descending system with acoustic signal, descending possibility per hand.
- Rolling up security plates on both ends of the tracks.
Informations
Accessories

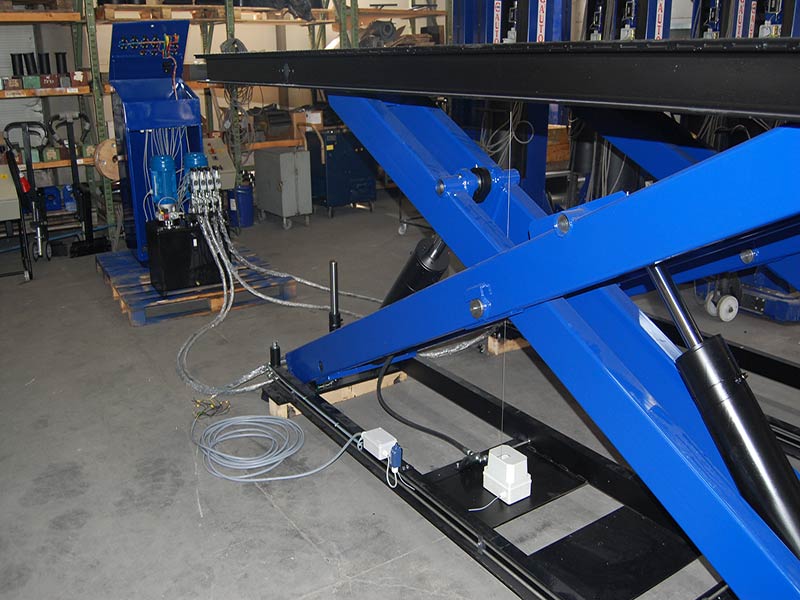

- Switch box for 220 V or 380 V
- short axle stands load capacity 3 t
- long axle stands load capacity 4 t
- small wheel supports/small wheel fork for cars
- Wheel holding device
SSH 80
- Capacity: 8 t
- Ramp length: 6.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 2,2 kW
- Colour: RAL 5002
SSH 100
- Capacity: 10 t
- Ramp length: 6.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 2,2 kW
- Colour: RAL 5002
SSH 200
- Capacity:
- Ramp length: 8.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 2 x 2,2 kW
- Colour: RAL 5002
SSH 240
- Capacity:
- Ramp length: 11.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 3 x 2,2 kW
- Colour: RAL 5002
SSH 300
- Capacity:
- Ramp length: 11.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 3 x 2,2 kW
- Colour: RAL 5002
SSH 320
- Capacity:
- Ramp length: 14.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 4 x 2,2 kW
- Colour: RAL 5002
SSH 400
- Capacity:
- Ramp length: 14.000 mm
- Ground height: 350 mm
- Lifting height: 2.100 mm
- Electrical power: 3P+N+PE, 230 V/400 V, 50 Hz
- Performance: 4 x 2,2 kW
- Colour: RAL 5002
